LIFTCORE A100 – Pneumatic Bike Service Stand

LIFTCORE A100 – Pneumatic Bike Service Stand

Lift your bike higher. Work with less strain.

Working on a heavy bicycle can mean lifting, bending, kneeling, and reaching into awkward positions for every repair.

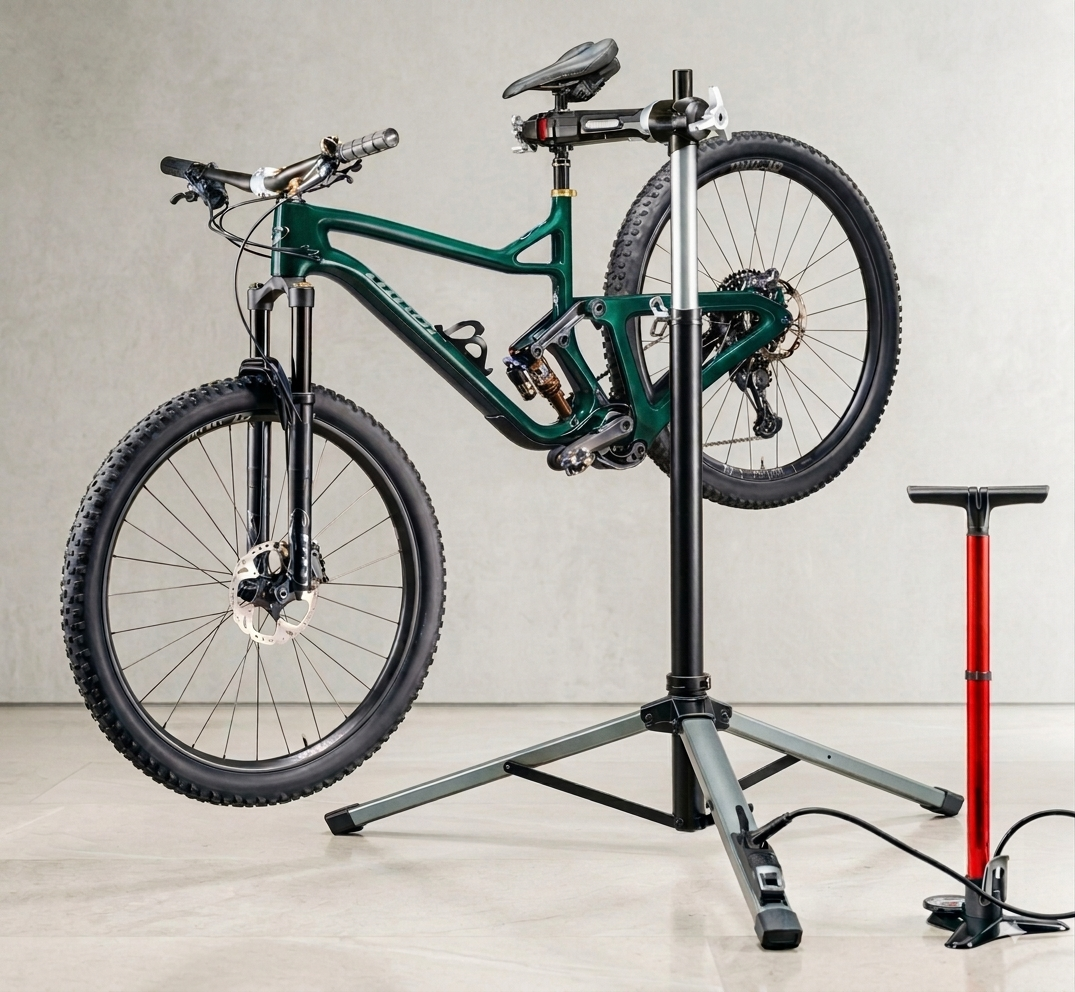

LIFTCORE A100 changes that. Using pneumatic lifting power, it raises your bicycle to a comfortable working height while providing a stable platform for maintenance, cleaning, adjustments, and repairs.

Designed for home garages, professional workshops, mobile service, and riders who work on heavier bikes.

Why LIFTCORE A100 Stands Apart

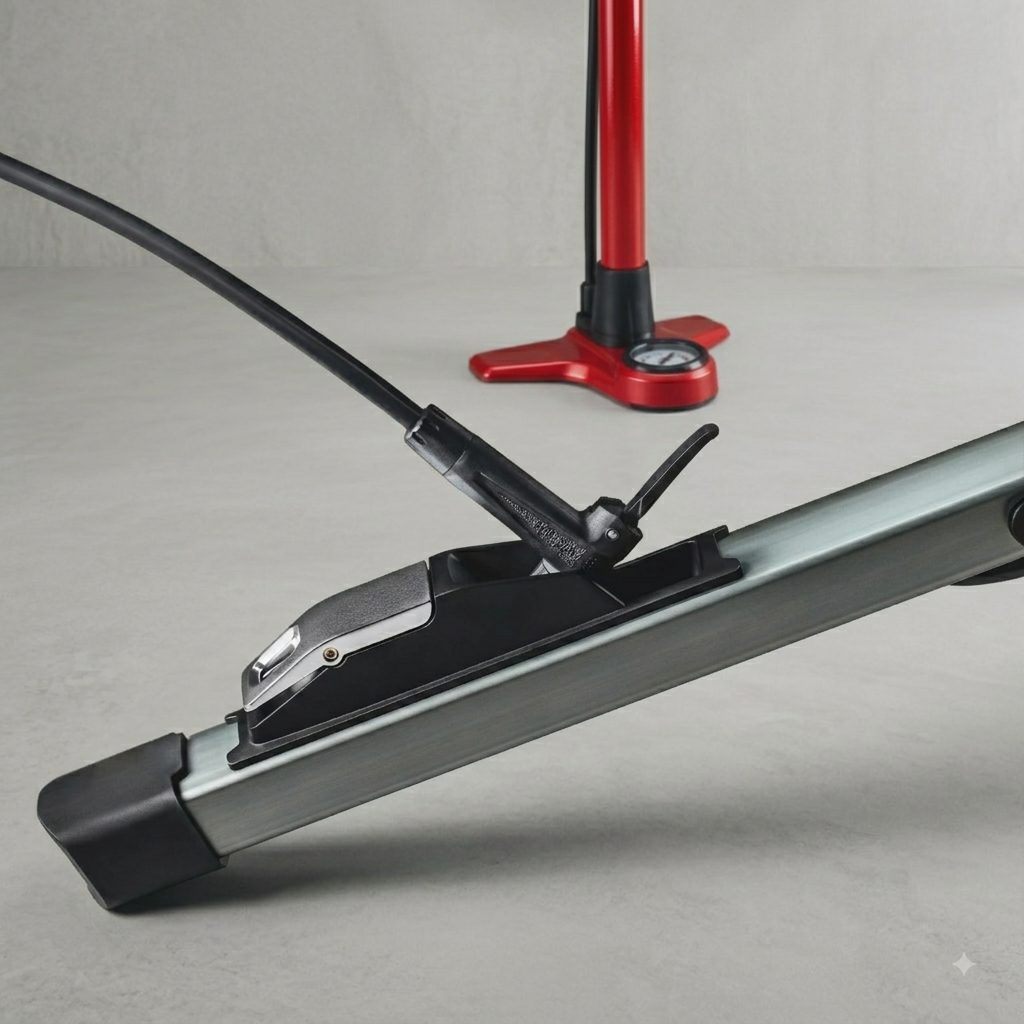

Air-Powered Lifting — No Battery or Outlet Required
LIFTCORE A100 uses a pneumatic lift system instead of a motor or battery. Connect a compatible floor pump, electric pump, or air compressor and raise your bicycle to the height you need.

Built for Heavy Bikes
Supports bicycles up to 100 lb / 45 kg, making it suitable for many e-bikes, cargo bikes, mountain bikes, road bikes, gravel bikes, and commuter bikes.

Work at a More Comfortable Height
The lift provides approximately 24" / 61 cm of height adjustment, with a working range of approximately 42.5–66.5" / 107–170 cm. Spend less time bending over your bike during maintenance.

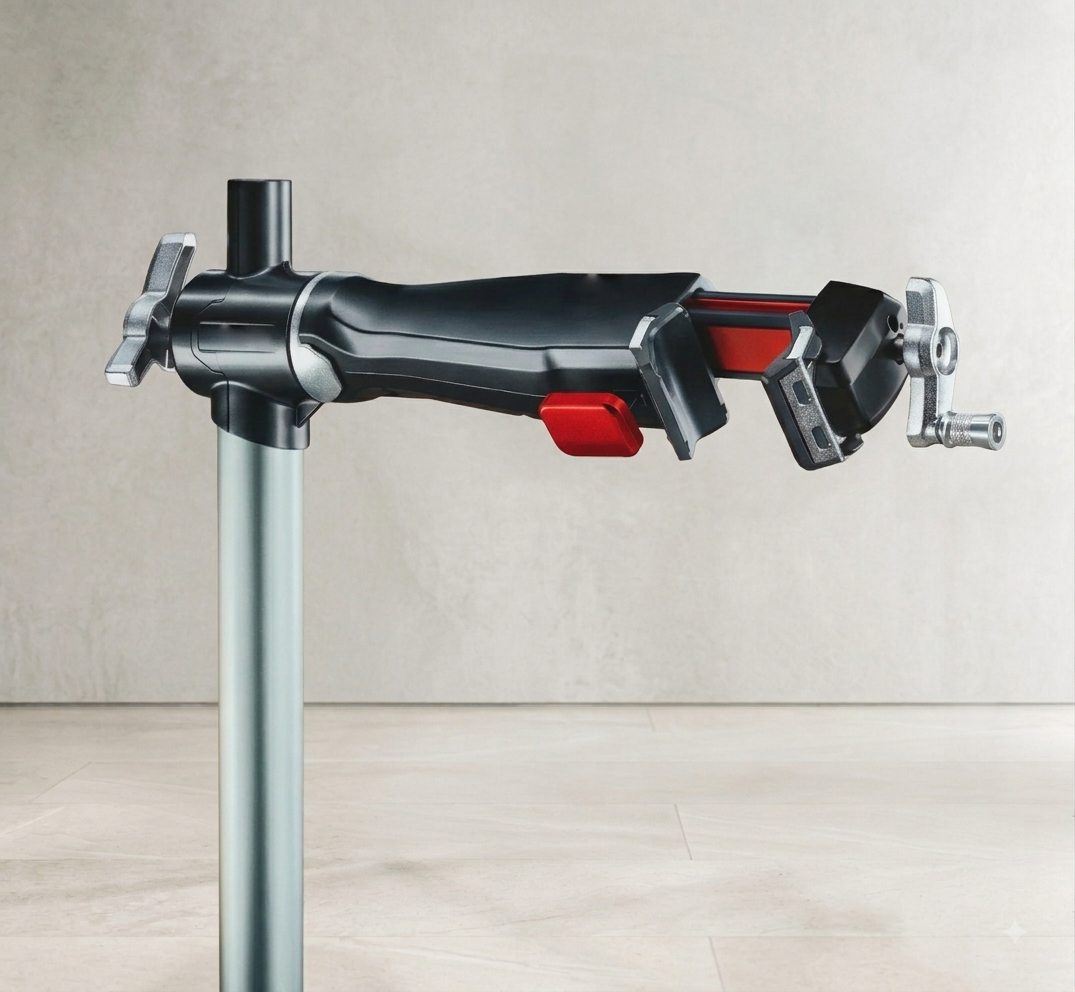

Secure, Adjustable Frame Clamp
The quick-release clamp supports compatible round frame tubing with an opening of up to 2.6" / 66 mm. The clamp can be positioned through 360° for better access while working.

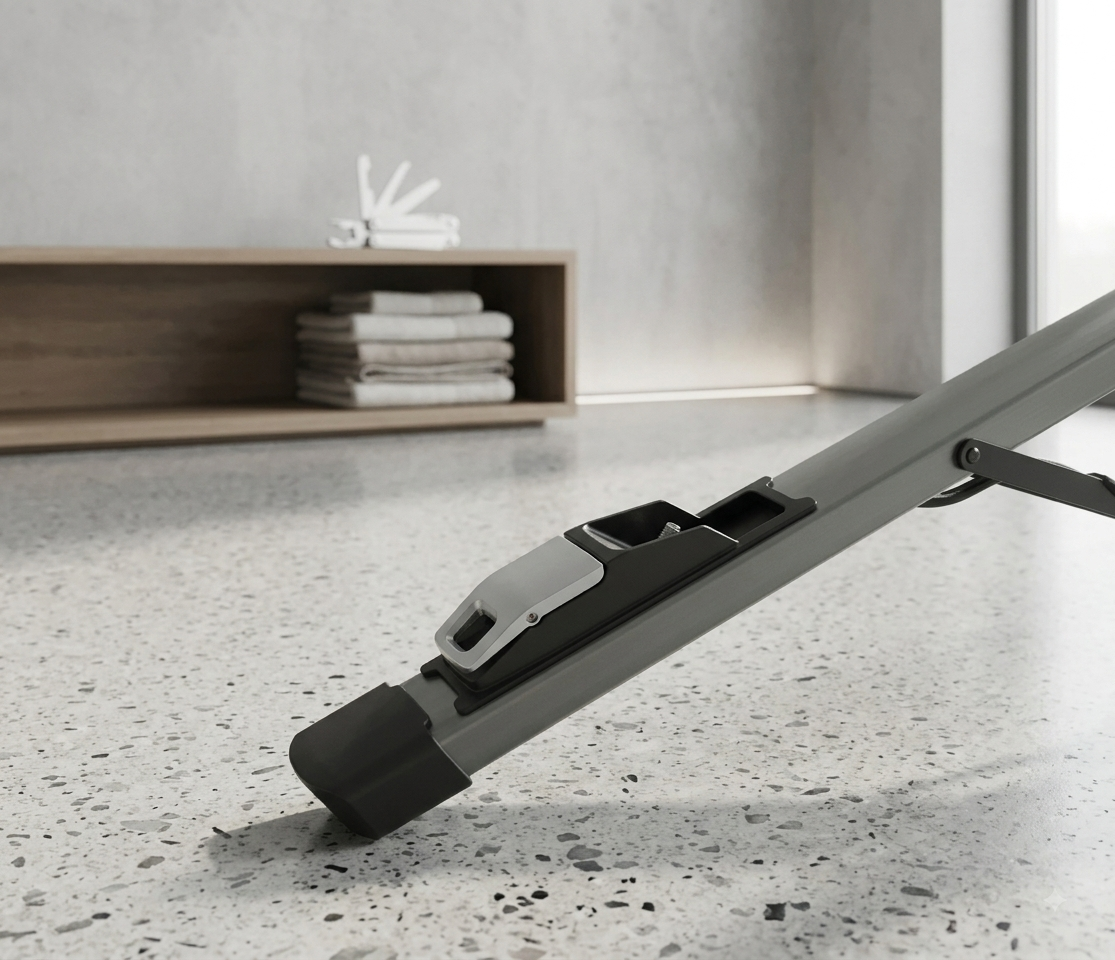

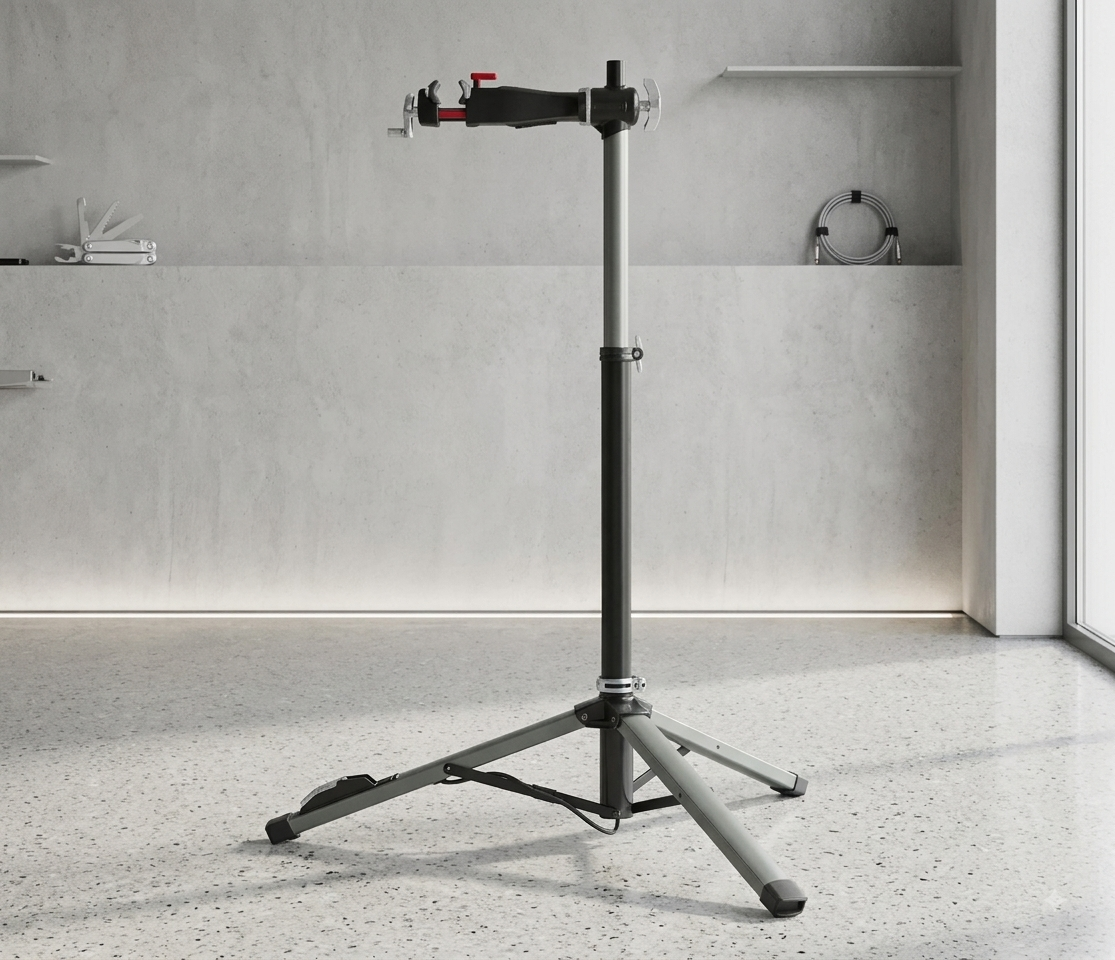

Wide Three-Leg Base
The anodized aluminum tripod provides a broad support footprint of approximately 56.25" / 143 cm, while rubber feet improve contact with the working surface.

Two Ways to Work
Use pneumatic lifting when you want help raising a heavier bicycle, or use LIFTCORE A100 as a conventional repair stand when an air source is not available.

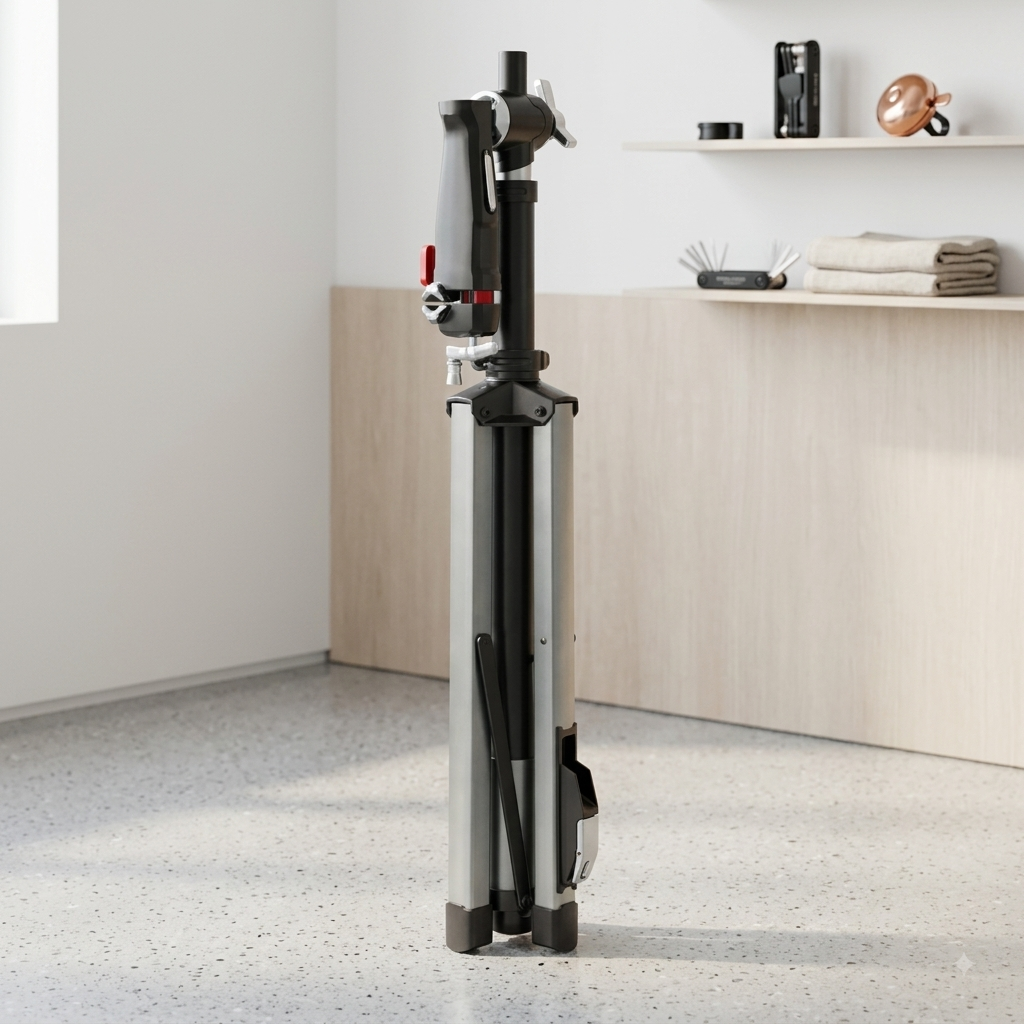

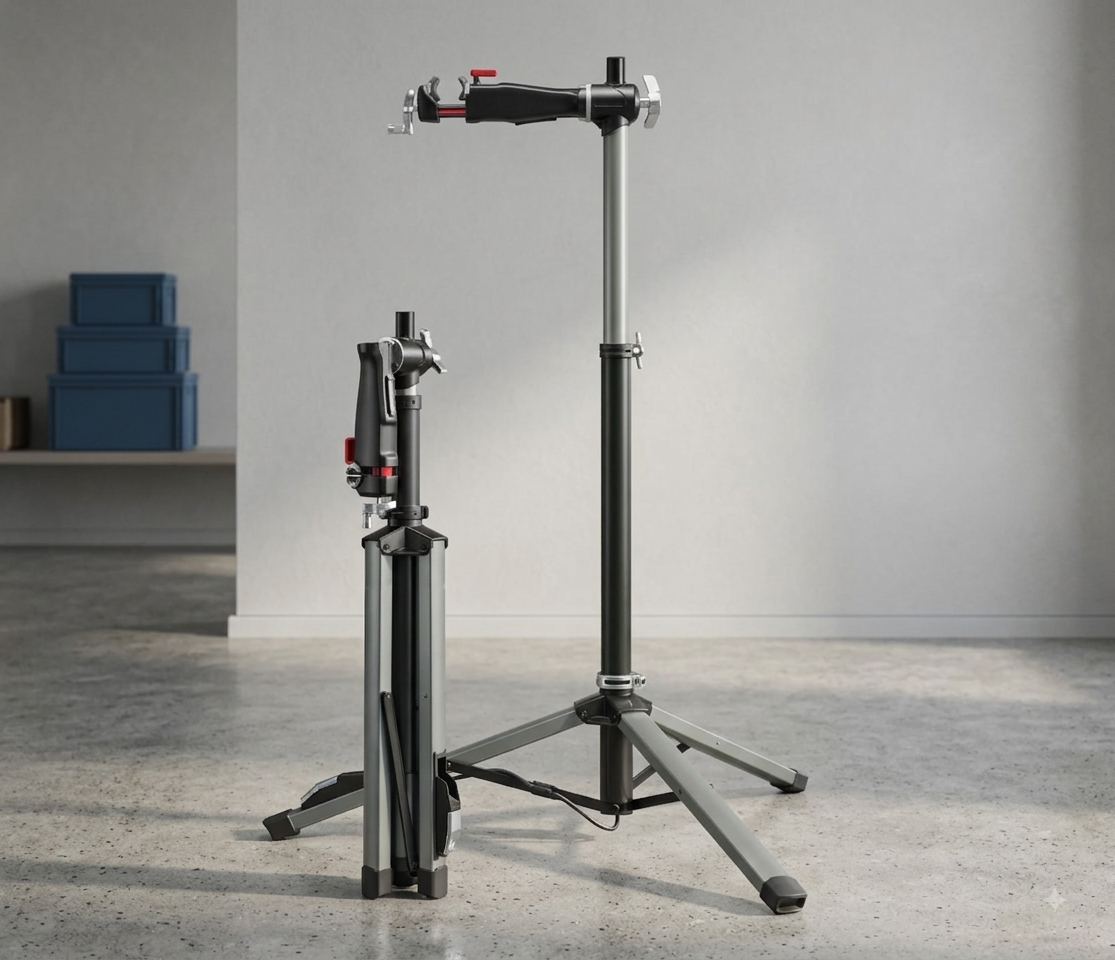

Folds for Storage and Transport
The stand folds down to approximately 8.6 × 6.9 × 45.4" / 218 × 175 × 1154 mm, making it practical for garages, service vehicles, race events, and outdoor service.

Lift Performance

For a 60 lb / 27 kg bicycle, typical lifting times are:

~3 seconds — 90 PSI air compressor
~12 seconds — High-flow floor pump
~18 seconds — High-pressure floor pump

Actual lifting time depends on the air source, pressure, and bicycle weight.

Product Specifications

Maximum Load: 100 lb / 45 kg
Working Height: 42.5–66.5" / 107–170 cm
Height Adjustment: Approx. 24" / 61 cm
Maximum Clamp Opening: 2.6" / 66 mm
Clamp Positioning: 360°
Tripod Stance: Approx. 56.25" / 143 cm
Air Connection: Schrader-compatible
Air Sources: Floor pump, electric pump, or air compressor
Structure: Anodized aluminum
Folded Size: 8.6 × 6.9 × 45.4" / 218 × 175 × 1154 mm
Operation: Pneumatic or conventional repair stand
Power: No battery or electrical outlet required

What's Included

• 1 × LIFTCORE A100 Pneumatic Bike Service Stand
• 1 × Adjustable Frame Clamp
• 1 × Pneumatic Connection System
• 1 × Support Hardware Set
• 1 × User & Safety Guide

What You Can Do With LIFTCORE A100

Bike Cleaning — Raise the bicycle for easier access to the frame, wheels, and drivetrain.

Brake & Drivetrain Service — Keep the working area at a comfortable height while adjusting or servicing components.

Wheel Service — Improve access for wheel inspection, adjustments, and maintenance.

E-Bike Maintenance — Support heavier bicycles within the 100 lb / 45 kg maximum load rating.

General Repairs — Create a more comfortable working position for routine home bicycle maintenance.

Where LIFTCORE A100 Shines

Home Garages — A practical solution when you want a proper repair stand without permanent workshop equipment.

Professional Workshops — Pneumatic lifting helps reduce manual effort during frequent bike servicing.

Service Vehicles — The foldable design makes transportation and setup easier.

Race Events & Trailheads — Take a capable service platform wherever bike maintenance is needed.

Outdoor Bike Cleaning — Suitable for appropriate outdoor use. Clean and dry the stand after wet conditions.

The LIFTCORE Difference

A heavy bicycle should not make basic maintenance harder than it needs to be.

LIFTCORE A100 combines pneumatic lifting, adjustable working height, a stable tripod base, and a secure frame clamp in one portable service stand.

Less lifting. Less bending. More comfortable maintenance.

LIFTCORE A100 — A better working height for every repair.
